SKU:XTARMC1PL
Xtar MC1 Single Bay Lithium-ion Battery Charger
About the Product
The Xtar MC1 Plus is a lithium-ion battery charger with a single charging bay that has a charging current of either 0.5 A or 1 A.
The MC1 Plus is suitable for charging the following batteries 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, 26650 lithium-ion type batteries.
For charging 3.6 V or 3.7 V lithium-ion batteries only.
Supplied with a USB charging cable
** Does NOT include Mains to USB Wall Plug **
Note: Always use in accordance with instruction manual and read before first use.
Product Features

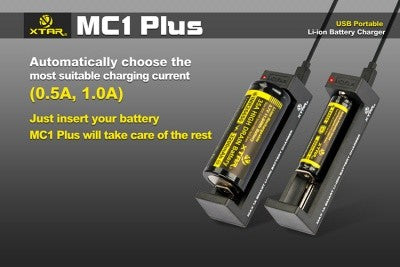

Automatically selects the most suitable charging current
Batteries can be left in the charger over night
Cuts off when charging is complete
Three-modes ( TC.CC.CV ) charging system
0 V battery activation
Reverse polarity and short circuit protection

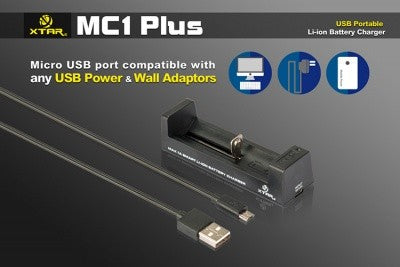

Micro USB port to supply power for the charger
Soft start to avoid sudden high current impact

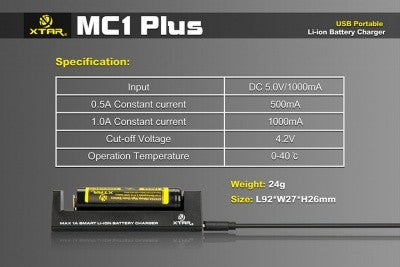

Specifications
Operation Temperature: 0 to 40?
IC Temperature Monitoring
Input Voltage: 5 V dc @ 1000 mA
Constant Charge Current: 500 mA / 1000 mA
Cut-off Voltage: 4.2 V
Termination Current: <60 mA
Weight: 24 grams
Dimensions: 92 x 27 x 26 mm

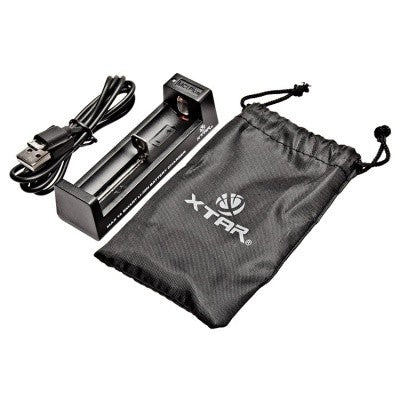

Packaging and Contents
Supplied in retail packaging and includes:
MC1 Plus single bay charger x 1
USB charge cable x 1
Pull string pouch x 1
Instruction manual x 1
Warranty card x 1
Warranty
6 Months
